This activity is not a LES as such, however it can be integrated into a lesson or a LES. It was designed to help adults or young people for whom visualization of objects from projections may present a particular challenge.

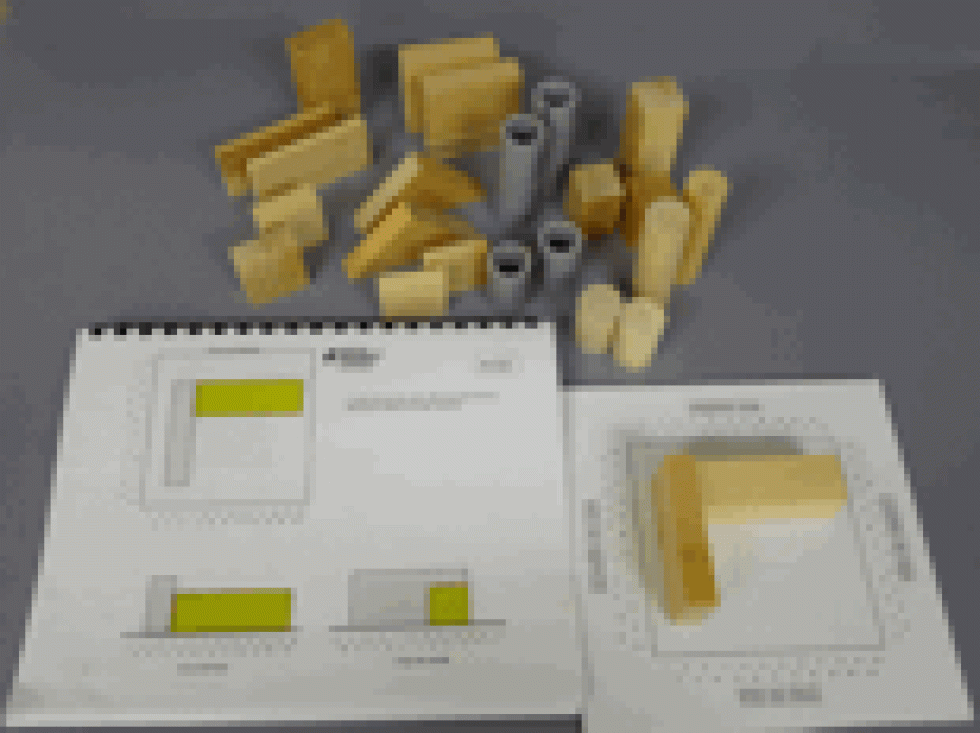

In the first pages of the document, you will find a description of the set of blocks, a panel and exercises in order of increasing difficulty.
The complete description of all parts of the game to manufacture easily is included.
Ressources on technical drawing (PPT format)
• Description of forms

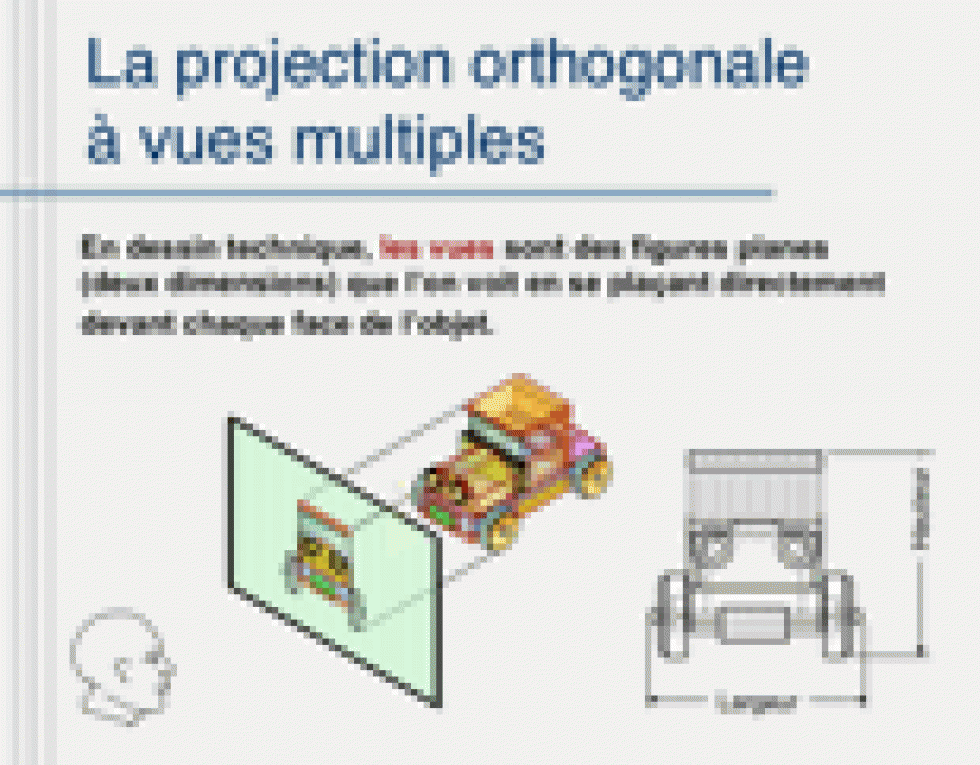

• Multiview projections
• Conventional lines
